Laser Cutting Motion Controller Visual Recognition & Position System TL5269

The system is a high-end intelligent cutting control system developed for automatic identification of ultra-large-format cutting that integrates automation technology, large-format vision technology, and laser technology, and fully integrates traditional manual operation modes into efficient and accurate computerized design Mainly used in large-format laser cutting machines, vibrating knife cutting machines and other equipment SCCD panoramic camera identification and positioning laser cutting control system

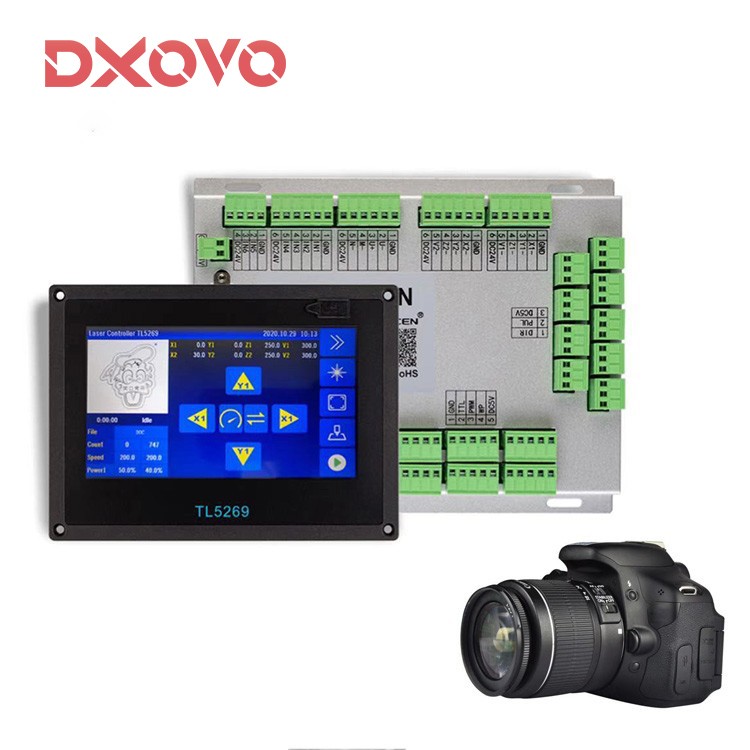

co2 laser controller board Model: TL5269

Application industry: Applicable to clothing leather, trademarks, woven labels, embroidered badges, digital printing, computer embroidery, printing engraving, template cutting and other industries.

Categorys : Control Systems

Sales hotline : +86 13725766389 Lucy Guo

Email : sales@dxovo.com

WhatsApp : +0086 13725766389

Product description

Features

SCCD panoramic camera positioning laser cutting control TL5269 system is developed for automatic identification of ultra-large-format cutting, which integrates automation technology, large-format vision technology and laser technology, and fully integrates traditional manual operation mode into efficient and accurate computerized design The high-end intelligent cutting control system Mainly used in large-format laser cutting machines, vibrating knife cutting machines and other equipment

✔ The shooting format is large, the recognition accuracy is high, and the entire material is imaged at one time, avoiding image errors caused by image splicing.

✔ The found contour can be modified locally or as a whole and then processed.

✔ Multi-template feature point positioning and sleeve cutting, supports real-time modification during processing, and can recognize various graphic formats.

✔ Support automatic edge-finding and cutting, realize continuous feeding, identify one version and cut one version.

✔ High-precision cutting of materials of various thicknesses without recalibration.

✔ Full-width automatic edge-lifting, easy to deal with large-format pieces cutting.

✔ Laser Cutting Motion Controller.

✔ 7-inch TFT LCD touch screen, intuitive and simple operation interface.

✔ Using a new 32-bit high-speed DSP to make the system run faster and more stable.

✔ Product is easy to operate, saving time after training.

✔ Support U disk offline file preview function, real-time display of laser head movement track.

✔ Device parameters can be set completely away from the PC.

✔ All optocouplers isolate external electromagnetic interference, and the system works stably and reliably.

✔ Support multi-languauge.

✔ Support USB2.0 high-speed interface, U disk read and write files are more stable, can identify various brands of U disk.

✔ Support network communication and USB communication, the transmission speed is faster and more stable.

✔ Intelligent diagnosis system self-fault.

✔ One key to switch the way of manually moving the axis.

✔ A variety of humanized positioning modes and return modes, which are convenient for customers with different habits to operate the machine.

✔ One-key continuous cutting, convenient to continue cutting after the processing file is interrupted in any way.

✔ When adjusting the cutting effect, there are few setting parameters, and the user is easy to hold.

✔ Support automatic feeding function.

✔ Support over size cutting;Compatible with file formats generated by various popular typesetting software.

✔ Three heads of single beam move each other, double beams are asynchronous, short avoidance time for large-size graphics and double beams at the same time, seamless splicing.

✔ Laser controller motherboard model: TL5269.

✔ Support HD Single Lens Reflex matching.

✔ Compatible software: TroSCCDCut / Laser CAD / JS vision laser cut.

✔ Compatible systems: WinXP, Vista, Win7, Win8, Win10,win11

Tags： Laser Cutting Motion Controller co2 laser controller board

Technical Parameters

Model	TL5269
Supported Lasers	CO2 glass laser / RF laser
Cutting accuracy	±0.01mm
Supported Graphics Formats	G-code,AI,SVG,PDF,DXF,PLT,DST,DSB,UD5,BMP,JIF,JPG,PNG etc.
Compatible systems	WinXP, Vista, Win7, Win8, Win10,win11
Number of control axis	X,Y,Z,U axis
Compatible software	LaserCAD, lightburn (plug-in support CORELDRAW,AUTOCAD, Adobe Illustrator)
Automatic feeding function	support
SLR Visual Recognition	support
Double beam asynchronous cutting	support
Input voltage	DC24V, 3A
Input	6 roads
Output	12 roads
Control heads	6 heads
Control Laser energy	0-100%, 0.1% Continuously adjustable
Continuous cutting	Support interrupted and then continue to cut
Communication port	Support USB high-speed reading and network LAN port communication
